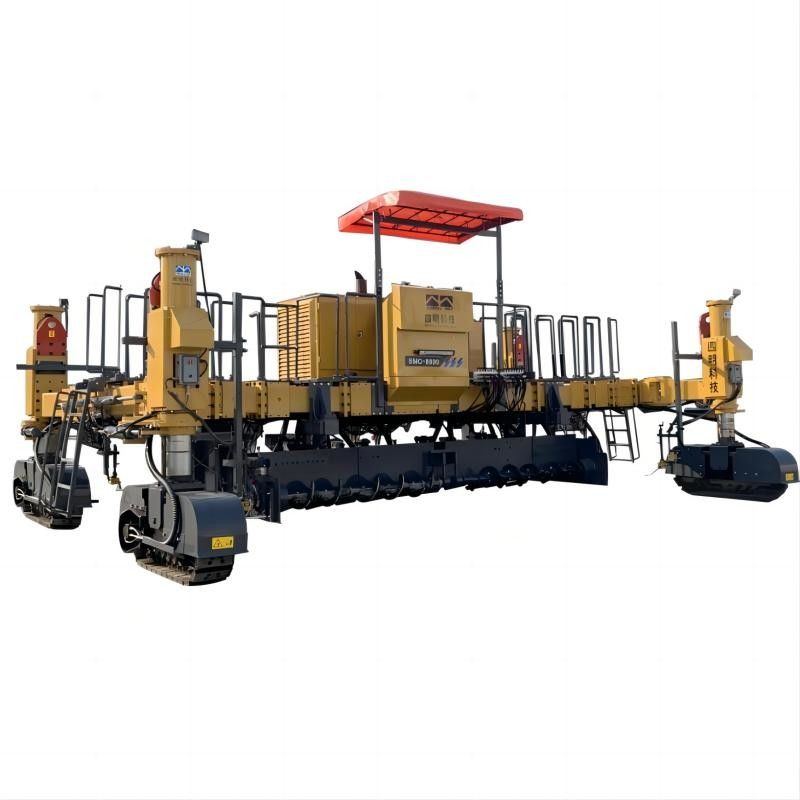

SMC-6600 Slipform Paver for Irrigation Canals & Water Channels
Canal Construction Challenges
Irrigation canals and drainage channels require uniform cross-sections, smooth inner surfaces, and long-term erosion resistance. Traditional manual or small-form construction methods often result in poor efficiency and inconsistent quality.
- Continuous lining of long channels
- Stable slope and thickness control
- Smooth surface to reduce water resistance
- Adaptation to rural or remote construction sites
SMC-6600 Slipform Canal Paving Solution
The SMC-6600 can be configured as a multi-purpose slipform canal paver specifically designed to overcome traditional construction challenges.
- Precise slope control for canal lining
- High-density vibration improves erosion resistance
- Smooth finished surface reduces water loss
- Continuous paving significantly shortens construction time
Technical Specifications
| Parameter |
Value |
| Paving Width |
3500-6000 mm |
| Paving Thickness |
0-450 mm |
| Smoothness |
±3 (mm/3m) |
| Paving Speed |
0-7.5 m/min |
| Travel Speed |
0-1.5 km/h |
| Vibrating Circuits |
16 |
| Vibrating Frequency |
0-167 Hz |
| Diesel Tank |
370 L |
| Water Tank |
400 L (standard) + 140L*4 (optional) |
| Transport Size (L*W*H) |
11740*2800*3220 mm |
| Engine Model |
SC7H240 G4 |
| Power |
177 Kw @ 2200rpm |
| Emission Standard |
Stage 4 |
System Components
Power System
Water-cooled engine for powerful and reliable operation with parallel three-in-one large-sized radiator featuring forced air cooling for excellent heat dissipation.
Hydraulic System
Four pump load sense hydraulic system from international brands with high quality filters on pump inlet/outlet ports.
Electronic Control System
Color graphic/text display with fault diagnosis, status monitoring, and alarms. Electronic automatic control for steering, grade, and slope via CAN-bus communication with four longitudinal slope sensors and two steering sensors.
Traveling Device
Four-track hydraulic drive with high traction. Load sense hydraulic drive minimizes system heating.
Vibration Compaction System
High quality hydraulic vibrator with square head shell. 16 standard vibration circuits (6 additional optional) with 0-167Hz stepless frequency adjustment.
Concrete Spreading System
Direct unloading from dump trucks with excavator spreading. Two hydraulic driven spreading augers with independent control and adjustable revolution.
Water System
High pressure washer with water gun. Standard 400L water tank with optional four 130L tanks.
Tamper Bar Device
Hydraulic driven with stepless frequency regulation. Creates surface slurry layer by pushing down coarse aggregate.
